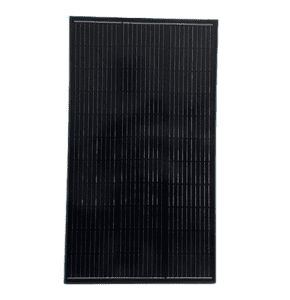

Class A - Pmax: 80W - Vmp: 19.40V - Imp: 4.13A - Voc: 23.28V - Isc: 4.42A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -40°C - 85°C > 90% après 10ans, > 80% après 20 ans

Class A - Pmax: 460W - Vmp: 41.4V - Imp: 11.12A - Voc: 50.92V - Isc: 11.89A - Max system Voltage: 1500V - Dimension: 1909*1134*35 - Max series Fuse: 20A - TEmp: -20°C - 85°C > 90% après 10ans, > 80% après 20 ans

INVERTER MODE -RATED POWER: 2200VA / 1800W -DC INPUT: 12VDC,150A -AC OUTPUT: 230VAC,50/60HZ, 7.8A AC CHARGER MODE -AC INPUT: 230VAC,50/60HZ, 21.3A DC OUTPUT: 13.5VDC MAX 60A,DEFAULT 30A AC OUTPUT: 230VAC,50/60HZ, 7.8A SOLAR CHARGER MODE -RATED POWER: 2000W -MAX CHARGER: 80A -NOMINAL OPERATING VOLTAGE: 240VDC -MAX.SOLAR.VOLTAGE VOC: 450VDC -MPPT VOLTAGE RANGE: 55-450VDC Ingress Protection :IP21 Protection Class:Class 1

PV INPUT -NOMINAL OPERATING VOLTAGE: 240VDC -VMAX PV : 500VDC -PV INPUT VOLTAGE RANGE: 60-450VDC -IMAX PV: 22A -FULL LOAD MPPT RANGE : 240-450VDC -MAXIMUM PV INPUT POWER : 6500W -MAXIMUM SOLAR CHARGER CURRENT: 120A GRID / AC OUTPUT -NOMINAL OUTPUT VOLTAGE : 220/230/240VAC -FEED-IN GRID VOLTAGE RANGE: 195-253VAC -FEED-IN GRID FREQUENCY RANGE: 49-51+1HZ -NOMINAL OUTPUT CURRENT: 27.0A -POWER FACTORY RANGE: >0.99 TWO LOAD OUTPUT POWER: -FULL LOAD : 6200W -MAXIMUM MAIN LOAD: {6200W} -MAXIMUM SECOND LOAD: 2066W -MAIN LOAD CUT OFF VOLTAGE: 52VDC -MAIN LOAD RETURN VOLTAGE: 54VDC AC INPUT: -NOMINAL OPERATING VOLTAGE: 230VAC -MAXIMUM INPUT CURRENT: 40A -NOMINAL OPERATING FREQUENCY: 50/60HZ -SURGE POWER: 12400VA -MAXIMUM AC CHARGING CURRENT: 100A

INVERTER MODE -RATED POWER: 1000VA/1000W -DC INPUT: 12VDC -AC OUTPUT: 230VAC,50/60HZ, 4.3A AC CHARGER MODE -AC INPUT: 230VAC,50/60HZ, 5.88A -DC OUTPUT: 13.5VDC -MAX 60A,DEFAULT 30A -AC OUTPUT: 230VAC,50/60HZ, 4.3A SOLAR CHARGER MODE -RATED POWER: 600W -MAX.SOLAR.VOLTAGE VOC: 150VDC -MPPT VOLTAGE RANGE: 20-150VDC -MAXIMUM SOLAR CHARGING CURRENT: 40A Ingress Protection :IP21 Protection Class:Class 1

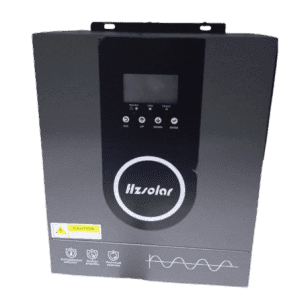

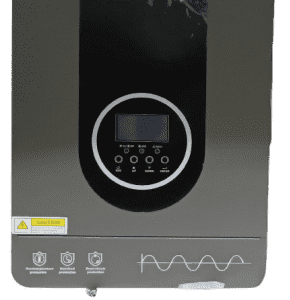

HzSolar - Convertisseur Hybride avec MPPT intégré, AC + PV input, ondulation pur sinus.

PV INPUT -NOMINAL OPERATING VOLTAGE: 360VDC -VMAX PV : 500VDC -PV INPUT VOLTAGE RANGE: 90-450VDC -IMAX PV: 18.0A/2 CHANNELS -FULL LOAD MPPT RANGE : 360-450VDC -MAXIMUM PV INPUT POWER : 5400W+5400W -MAXIMUM SOLAR CHARGER CURRENT: 160A GRID / AC OUTPUT -NOMINAL OUTPUT VOLTAGE : 220/230/240VAC -FEED-IN GRID VOLTAGE RANGE: 195-253VAC -FEED-IN GRID FREQUENCY RANGE: 49-51+1HZ -NOMINAL OUTPUT CURRENT: 44.3A -POWER FACTORY RANGE: >0.99 TWO LOAD OUTPUT POWER: -FULL LOAD : 10200W -MAXIMUM MAIN LOAD: 10200W -MAXIMUM SECOND LOAD: 3400W -MAIN LOAD CUT OFF VOLTAGE: 52VDC -MAIN LOAD RETURN VOLTAGE: 54VDC AC INPUT: -NOMINAL OPERATING VOLTAGE: 230VAC -MAXIMUM INPUT CURRENT: 50A -NOMINAL OPERATING FREQUENCY: 50/60HZ -SURGE POWER: 20400VA -MAXIMUM AC CHARGING CURRENT: 140A

Class A - Pmax: 30W - Vmp: 19.3V - Imp: 1.56A - Voc: 23.16V - Isc: 1.67A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -40°C - 85°C > 90% après 10ans, > 80% après 20 ans

INVERTER MODE -RATED POWER: 3200VA/3000W -DC INPUT: 24VDC,125A -AC OUTPUT:230VAC,50/60HZ, 21.3A AC CHARGER MODE -AC INPUT:230VAC50/60HZ, 21.3A DC OUTPUT:27VDC MAX 60A,DEFAULT 30A AC OUTPUT:230VAC,50/60HZ, 13A SOLAR CHARGER MODE -RATED POWER: 3000W -MAX CHARGER:80A -NOMINAL OPERATING VOLTAGE: 240VDC -MAX.SOLAR.VOLTAGE VOC:450VDC -MPPT VOLTAGE RANGE: 55-450VDC Ingress Protection :IP21 Protection Class:Class 1

Class A - Pmax: 50W - Vmp: 19.32V - Imp: 2.59A - Voc: 23.18V - Isc: 2.78A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -40°C - 85°C > 90% après 10ans, > 80% après 20 ans
