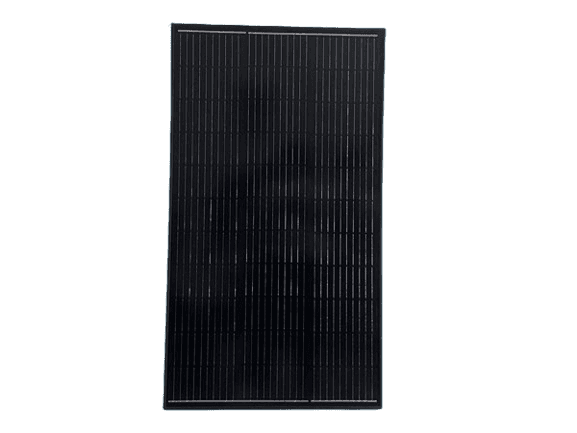

Sunshine Solar Full Black 200W18V
298 000,00 Ar
Class A - Pmax: 200W - Vmp: 19.90V - Imp: 10.21A - Voc: 23.5V - Isc: 10.92A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -40°C - 85°C > 90% après 10ans, > 80% après 20 ans
Nos recommandations

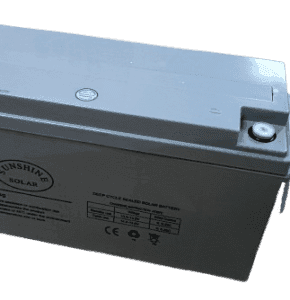

Batterie 12V 200Ah
Sunshine Solar - Deep cycle Gel sealed battery. 12V 200Ah/2400Wh

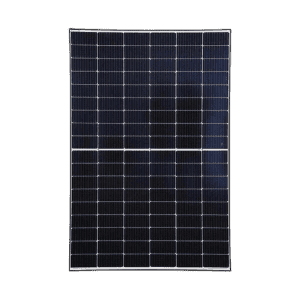

Sunshine Solar - Mono 400W 36V
Class A - Pmax: 400W - Vmp: 40.7V - Imp: 9.83A - Voc: 50.06V - Isc: 10.52A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -20°C - 85°C > 90% après 10ans, > 80% après 20 ans

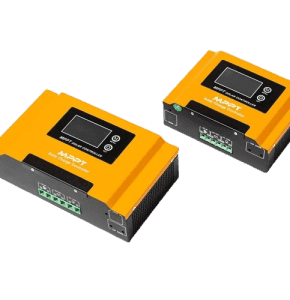

Régulateur MPPT 60A
MPPT - Compatible 12V/24V/48V avec détection automatique.
Sunshine Solar - Mono 300W 36V
Class A - Pmax: 300W - Vmp: 32.6V - Imp: 9.21A - Voc: 39.12V - Isc: 9.86A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -40°C - 85°C > 90% après 10ans, > 80% après 20 ans

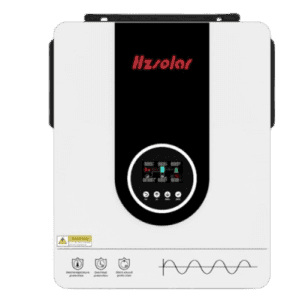

HzSolar Hybride 10.2kVA
PV INPUT -NOMINAL OPERATING VOLTAGE: 360VDC -VMAX PV : 500VDC -PV INPUT VOLTAGE RANGE: 90-450VDC -IMAX PV: 18.0A/2 CHANNELS -FULL LOAD MPPT RANGE : 360-450VDC -MAXIMUM PV INPUT POWER : 5400W+5400W -MAXIMUM SOLAR CHARGER CURRENT: 160A GRID / AC OUTPUT -NOMINAL OUTPUT VOLTAGE : 220/230/240VAC -FEED-IN GRID VOLTAGE RANGE: 195-253VAC -FEED-IN GRID FREQUENCY RANGE: 49-51+1HZ -NOMINAL OUTPUT CURRENT: 44.3A -POWER FACTORY RANGE: >0.99 TWO LOAD OUTPUT POWER: -FULL LOAD : 10200W -MAXIMUM MAIN LOAD: 10200W -MAXIMUM SECOND LOAD: 3400W -MAIN LOAD CUT OFF VOLTAGE: 52VDC -MAIN LOAD RETURN VOLTAGE: 54VDC AC INPUT: -NOMINAL OPERATING VOLTAGE: 230VAC -MAXIMUM INPUT CURRENT: 50A -NOMINAL OPERATING FREQUENCY: 50/60HZ -SURGE POWER: 20400VA -MAXIMUM AC CHARGING CURRENT: 140A
Sunshine Solar Full black 120W18V
Class A - Pmax: 120W - Vmp: 19.43V - Imp: 6.17A - Voc: 23.34V - Isc: 6.60A - Max system Voltage: 1500V - Max series Fuse: 20A - TEmp: -40°C - 85°C > 90% après 10ans, > 80% après 20 ans

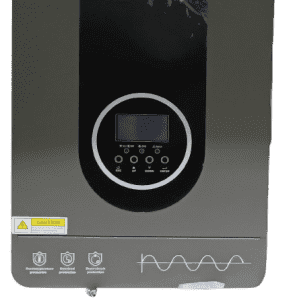

Convertisseur Hybride 6.2kVA
PV INPUT -NOMINAL OPERATING VOLTAGE: 240VDC -VMAX PV : 500VDC -PV INPUT VOLTAGE RANGE: 60-450VDC -IMAX PV: 22A -FULL LOAD MPPT RANGE : 240-450VDC -MAXIMUM PV INPUT POWER : 6500W -MAXIMUM SOLAR CHARGER CURRENT: 120A GRID / AC OUTPUT -NOMINAL OUTPUT VOLTAGE : 220/230/240VAC -FEED-IN GRID VOLTAGE RANGE: 195-253VAC -FEED-IN GRID FREQUENCY RANGE: 49-51+1HZ -NOMINAL OUTPUT CURRENT: 27.0A -POWER FACTORY RANGE: >0.99 TWO LOAD OUTPUT POWER: -FULL LOAD : 6200W -MAXIMUM MAIN LOAD: {6200W} -MAXIMUM SECOND LOAD: 2066W -MAIN LOAD CUT OFF VOLTAGE: 52VDC -MAIN LOAD RETURN VOLTAGE: 54VDC AC INPUT: -NOMINAL OPERATING VOLTAGE: 230VAC -MAXIMUM INPUT CURRENT: 40A -NOMINAL OPERATING FREQUENCY: 50/60HZ -SURGE POWER: 12400VA -MAXIMUM AC CHARGING CURRENT: 100A
Batterie 12V 150Ah
Sunshine Solar - Deep cycle Gel sealed battery. 12V 150Ah/1800Wh
Sunshine Solar - Mono 460W 36V
Class A - Pmax: 460W - Vmp: 41.4V - Imp: 11.12A - Voc: 50.92V - Isc: 11.89A - Max system Voltage: 1500V - Dimension: 1909*1134*35 - Max series Fuse: 20A - TEmp: -20°C - 85°C > 90% après 10ans, > 80% après 20 ans

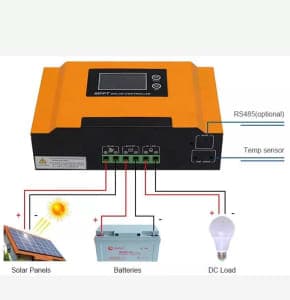

Régulateur MPPT 30A
MPPT - Compatible 12V/24V/48V avec détection automatique.
Convertisseur Hybride 3kVA
INVERTER MODE -RATED POWER: 3200VA/3000W -DC INPUT: 24VDC,125A -AC OUTPUT:230VAC,50/60HZ, 21.3A AC CHARGER MODE -AC INPUT:230VAC50/60HZ, 21.3A DC OUTPUT:27VDC MAX 60A,DEFAULT 30A AC OUTPUT:230VAC,50/60HZ, 13A SOLAR CHARGER MODE -RATED POWER: 3000W -MAX CHARGER:80A -NOMINAL OPERATING VOLTAGE: 240VDC -MAX.SOLAR.VOLTAGE VOC:450VDC -MPPT VOLTAGE RANGE: 55-450VDC Ingress Protection :IP21 Protection Class:Class 1
